Fire-resistant curtain walls

EI30 / EI60 / EI90 / E30-E90 / EW30-EW60 In steel and stainless stee

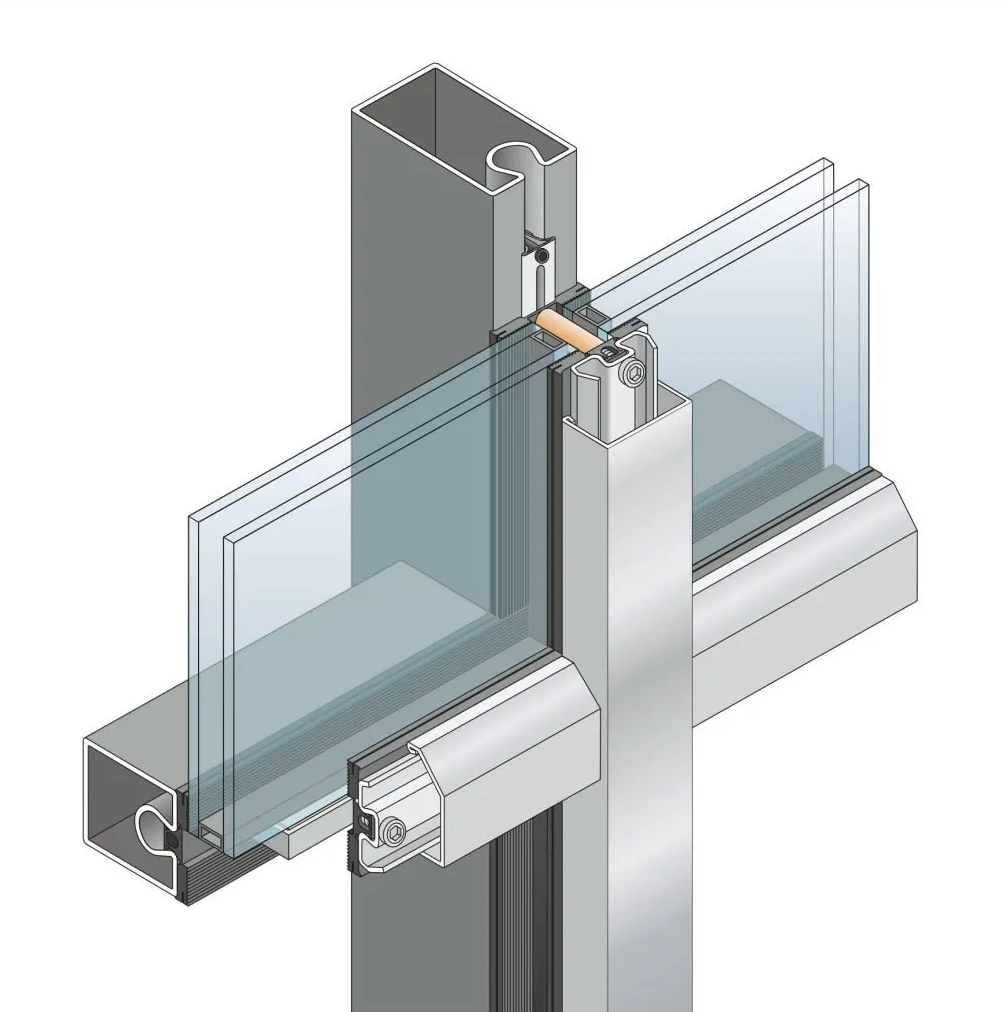

The Forster Thermix Vario system is based on a mullion/transom construction for thermally insulated curtain walls. The steel profile features very narrow facing widths from 45 mm, allowing for a wide range of applications such as fire protection and burglary resistance, even with fire resistance levels up to -/90/90 (walls). The internal side profiles (steel or stainless steel) perform the load bearing function.

With an innovative processing tool, it can save your time and enhance accuracy with pre-marked weather strippings.

There are two different variants:

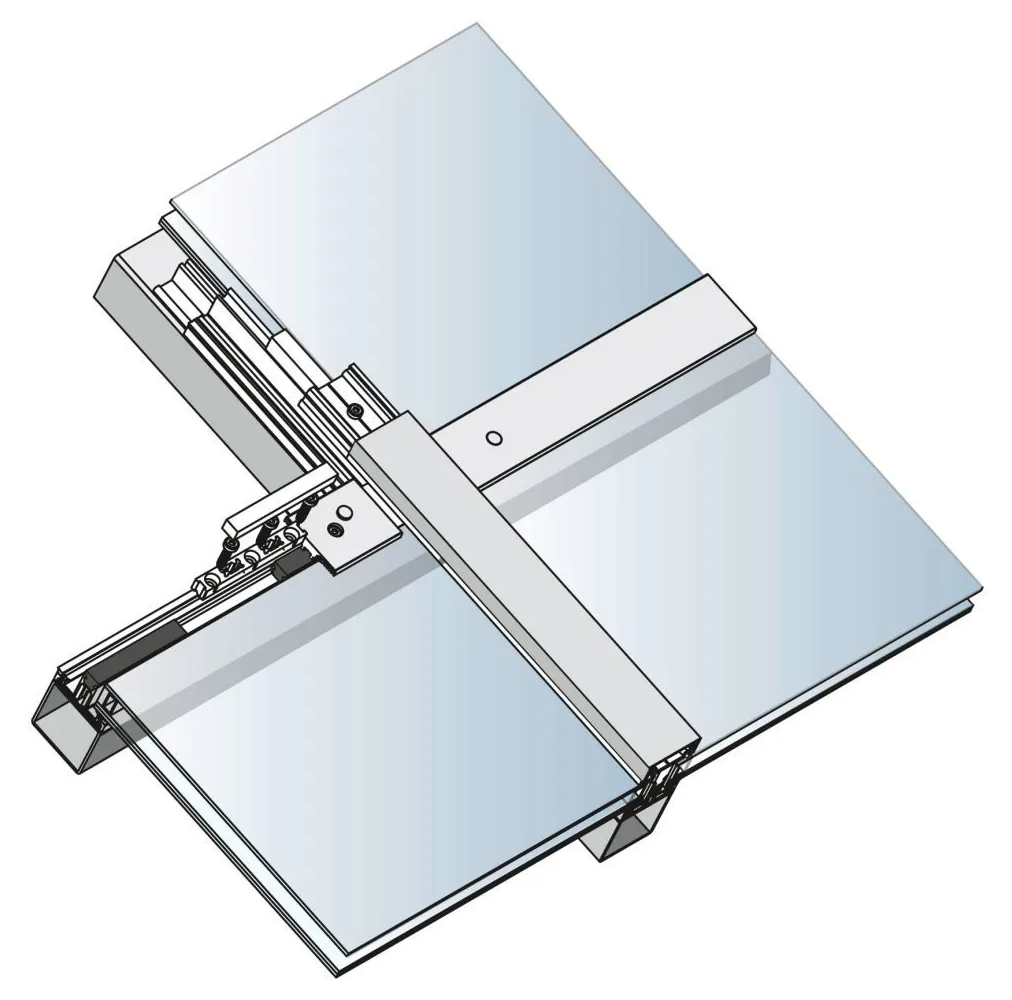

• Forster Thermfix Vario for  safety applications and sloped glazings
• Forster Thermfix Vario HI for highly insulated curtain walls without safety requirements

Both system versions can be combined with each other and with thermally insulated doors and windows from the system Forster Unico.

Forster Thermfix Vario is a comprehensive fire-protection system suitable for use as vertical glazings, as well as curtain walls in fire-resistant categories EI30 / EI60 / EI90 / E30-E90 / EW30- EW60.

Unique advantages:

• Aesthetic appeal & performance:
•  Steel, stainless steel, welded, grain 220-240 or combination of steel/stainless steel/aluminium
•  extremely slender visible section width – 45 mm – and individual profile design and surface treatment
• Can be used over several stories up to a height of 5000 mm
• Safety and protection:
• Classification from CE-tests according to EN 13830:
• Resistance to wind load according to EN 12179: 3 kN, safety load 4.5 kN
• Rain impermeability according to EN 12155: RE1200
• Air permeability according to EN 12153: AE (>600)
• Sound insulation (EN ISO 140-3): RW up to 45 dB
• Impact-resistance according to EN 14019: E5 / I5
• Resistance to wind load according to EN 12179: 3 kN, safety load 4.5 kN
• Impact-resistance according to EN 14019: E5 / I5
• Burglary-resistance according to EN 1627-1630: RC2/RC3
• Bullet proof according to EN 1522-1523: FB4 NS
• Corner building in class EI30 and EI60
• Fire-resistance classification of construction products according to EN 13501-2: EI30, EI60, EI90, i<->o (E30/ EW30, E60/EW60, E90)
• Reaction to fire of construction products acc. to EN 13501-1: Class E
• EI30: Proved combination of bullet-resistance according to EN 1522-1523 FB4 NS and burglary-resistance according to EN 1627-1630 RC2/RC3
• Creativity
• High potential for freedom of design due to harmonised components
• Trouble-free assembly using mechanical T-joints.
