Fire-resistant doors and screenings

EI30 / EI60 / EI90 / EI120 in steel and stainless steel

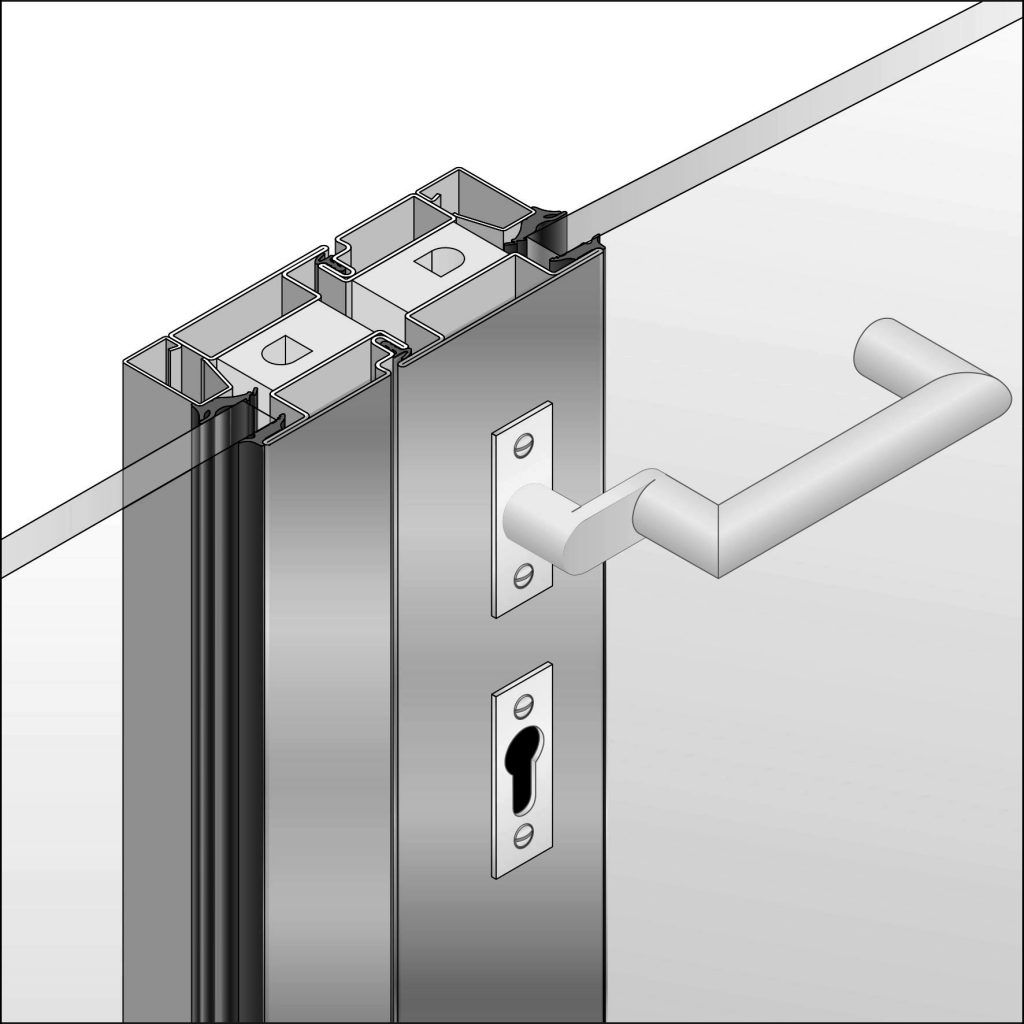

Forster Fuego Light is the reliable profile system for fire protection, as well as smoke, bullet and intruder resistance.

Tested and approved, it provides a very extensive complete profile system with fittings and accessories for flush single- and double-leaved glazed fire resistant doors, as well as for fire resistant glazed walls.

Fire resistance approval:

• up to -/30/30 for sliding doors
• -/60/60 for singles, pairs, and pivot doors
• -/90/90 for single and pair doors
• -/120/120 for fixed windows

The flush doors constructed around a narrow steel frame with a large glass area offer maximum transparency, a sleek appearance and reliable security.

The system offers a wide range of applications and a high degree of design freedom. In addition to fire doors and glazed fire screens other available systems are tested like fire protection sliding doors, with and without escape route function, doors with finger guard and flush reverse sheet metal frame doors.

The hardware is also comprehensive, tested and approved for all suitable applications, from door automation to concealed hinges and door closers.

Unique advantages:

• Aesthetic appeal:
• high degree of aesthetic appeal: extremely slender visible profile widths ( outer frame/ leaf measurement of only 130 mm)
• overall filigree look and great transparency delivers more light, more clarity, more safety
• special touches thanks to variations in materials  (stainless steel, grinded, 220-240 grain), individual surface design
• Matching locks and fittings:
• concealed hinges and attractively shaped stainless steel handle sets
• slender roller door hinges and concealed invisible door-closing systems.
• Safety and protection:
• Fire-resistant doors: -/30/30, -/60/30, and -/90/90 in combination with smoke-proofing requirements.
• Fire-resistant screening: -/30/-,  -/60/30, -/60/60, -/90/90, -/120/120
• Fire-resistant sliding door: -/30/30
• Flush mounted sheet metal door -/30/30
• Burglar-resistant RC 1-3 according to EN 1627-1630
• Maximum safety that remains invisible
• Creativity
• Prefabricated profiles for efficient processing, including assembly of the concealed door-closers.
• Compatible systems that complement one another perfectly. Smoke protection doors (forster presto), fire-resistant curtain walls (forster thermfix vario) or thermally insulated doors and windows (forster unico) can be optimally combined thanks to the identical appearance.

Available in both mild and stainless steel, Fuego Light slimline section has great strength and is appropriate for very large panes.

Mild steel sections can be treated with paint or powder coating. Stainless steel sections can also be painted or powder coated in highly corrosive environments.

The complete Fuego Light range includes all hardware (hinges, locks, handles, door seals, beadings, etc) for seamless assembly.
